ROLAND TD-50DP TD-50 Digital Upgrade Pack

( 0 Reviews )
Rs. 383,588.00 Rs. 326,049.00

Inclusive of all GST

UPGRADE ANY V-DRUMS KIT WITH THE LATEST MODULE AND DIGITAL TRIGGER PADS FROM THE FLAGSHIP TD-50 SERIES

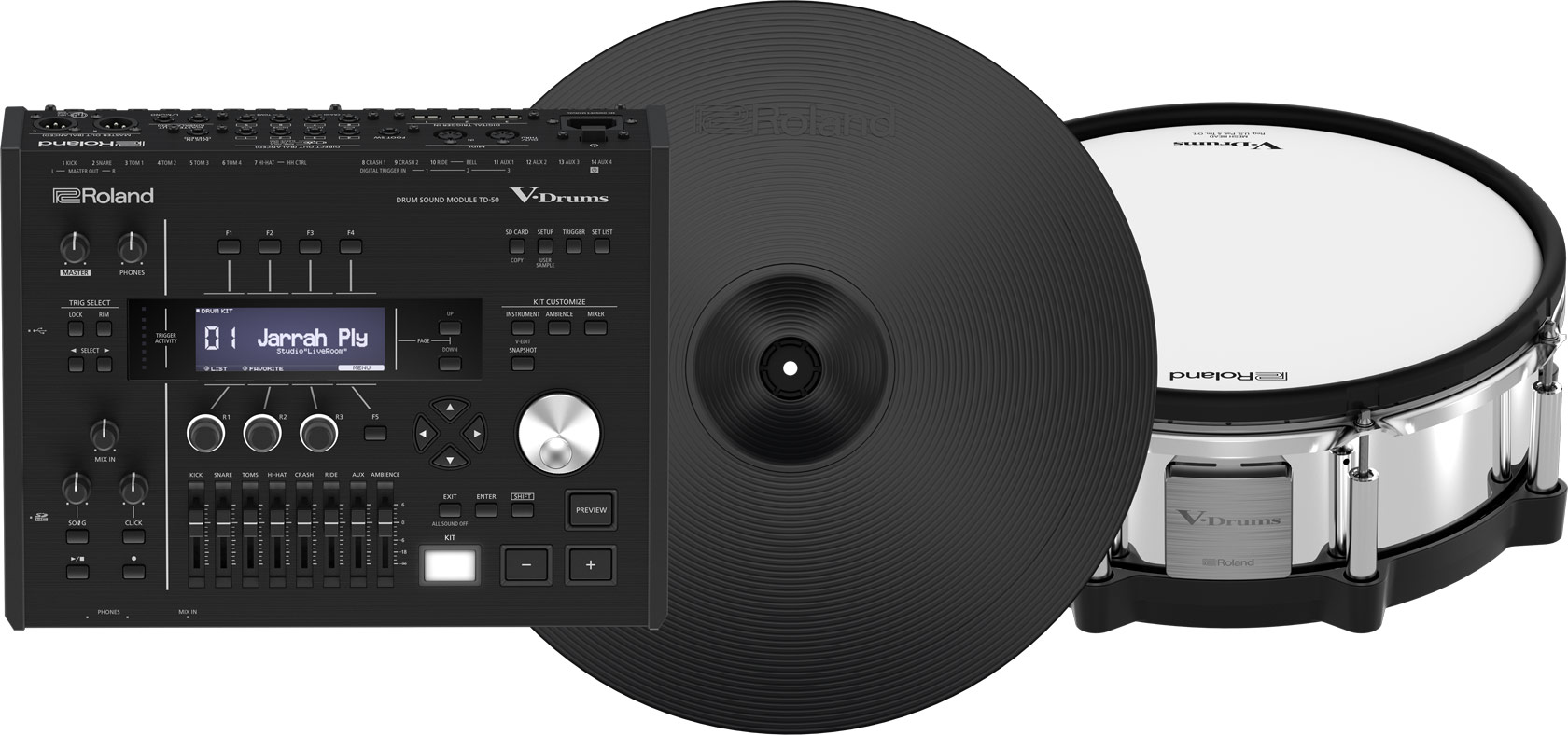

Introducing the TD-50DP Digital Upgrade Pack for Roland V-Drums. Take the latest TD-50 Sound Module, along with the PD-140DS Digital Snare and CY-18DR Digital Ride, and add them to your existing V-Drums kit for supreme playability and unmatched expression. Featuring an advanced processor and newly developed Prismatic Sound Modeling, the TD-50 module delivers Roland’s most impressive and wide-ranging sounds yet. In addition to traditional analogue trigger inputs, the module also has all-new digital trigger inputs for high-speed communication with the multi-element sensor systems of the PD-140DS snare and CY-18DR ride pads. Meanwhile, deep editing features and flexible connectivity put you in charge. With peerless sound quality, response, and expression, the TD-50 Digital Upgrade Pack lets you use your current V-Drums kit to access to the latest pro standard in electronic drums.

  • TD-50 module with Prismatic Sound Modeling and all-new onboard sounds
  • Newly developed 14-inch PD-140DS Digital Snare with a high-resolution multi-sensor system for unparalleled dynamics and accurate positional detection
  • Play cross sticks using traditional techniques, with no need to adjust settings inside the module
  • New 18-inch CY-18DR Digital Ride provides accurate positional sensing and improved dynamics using an innovative multi-sensor system
  • Captures nuances of hard and soft playing on the bow, bell, and edge areas while touch sensors allow cymbal muting with a finger touch
  • Advanced V-Edit system to customize drum and cymbal sounds
  • Play your own WAV samples via an SD card
  • USB 10-channel audio out for multi-track recording through a single USB cable
  • Stereo XLR master output and eight TRS direct outs provide balanced connections to a PA
  • Metronome with Quiet Count plus audio recording/playback functions for practice
  • Audio record function to capture and export drumming performances

Details

TD-50 SPECIFICATIONS

Drum Kits - 100

Instruments - More than 400

Effect Types:

Pad Compressor: each pad
Pad Equalizer: each pad
Room Type: 25 types
Reverb Type: 5 types
Stereo Enhancer
Multi-Effects: 3 systems, 30 types
Master Compressor
Master Equalizer

User Sample Import

Number of User Sample: Maximum 500 (includes factory preloaded user samples)
Sound Length (total): 24 minutes in mono, 12 minutes in stereo
File formats that can be loaded: WAV (44.1 kHz, 16/24 bits)

Song Player (SD Card)

Audio File: WAV (44.1 kHz, 16/24 bits), MP3

Recorder

Recording Method: Realtime
Maximum Note Storage: approx. 40,000 notes
Export File Format: WAV (44.1 kHz, 16 bits), SMF

Display

Graphic LCD 256 x 80 dots
TRIGGER ACTIVITY Indicator (LED)

Faders

8 (KICK, SNARE, TOMS, HI-HAT, CRASH, RIDE, AUX, AMBIENCE)

External Memory

SD Card (SDHC supported)

Connectors

TRIGGER IN jack x 14: 1/4-inch TRS phone type (Exclusion use with digital pad)
DIGITAL TRIGGER IN port x 3: USB A type
MASTER OUT (UNBALANCED) jacks (L/MONO, R): 1/4-inch phone type
MASTER OUT (BALANCED) jacks (L, R): XLR type, balanced
DIRECT OUT (BALANCED) jack x 8: 1/4-inch TRS phone type, balanced
PHONES jack x 2: Stereo 1/4-inch phone type, Stereo miniature phone type
MIX IN jack x 2: Stereo 1/4-inch phone type, Stereo miniature phone type
MIDI (IN, OUT/THRU) connectors
USB COMPUTER port: USB B type (USB Hi-Speed AUDIO/MIDI)
FOOT SW jack: 1/4-inch TRS phone type
AC IN jack

Number of USB Audio Record/Playback Channels

Sampling Rate (Original): 44.1 kHz
Sampling Rate (with Sampling rate converter): 96 kHz, 48 kHz
Record: 10 channels
Playback: 4 channels

Power Supply

AC 117 V, AC 220 V, AC 230 V, AC 240 V

Power Consumption

30 W

Accessories

Quick Start
Power Cord

Options (sold separately)

Pad: PD series, PDX series, BT-1
Cymbal: CY series
Kick: KD series, KT series
Hi-Hat: VH-series
Hi-Hat Control Pedal: FD series
Acoustic Drum Trigger: RT series
Footswitch: BOSS FS-5U, FS-6
Personal Drum Monitor: PM-10
Drum Stand: MDS-50KV, MDS-50K

TD-50 SIZE AND WEIGHT

Width - 330 mm
            13 inches

Depth - 255 mm
             10-1/16 inches

Height - 118 mm
              4-11/16 inches

Weight - 3.3 kg
              7 lbs. 5 oz.



PD-140DS SPECIFICATIONS

Pad size - 14 inches

Shell depth - 4.3 inches

Tension rods - 8

Head - 3-ply mesh head (Floating mid-layer structure)

Available playing methods (Triggers)

Head shot (High resolution positional detection, Wide dynamic range)
Rim shot (Depth detection, Wide dynamic range)
Cross stick (Automatic switching)
Brush sweep

Sensor system

Multi element sensor system
Head sensor
Position sensors x 3
Rim sensor
Cross stick sensors x 3
Built-in sensing processor

Supported covering size

98 (width) x 1,060 (length) mm
Thickness: 1 mm or less

Connector

DIGITAL TRIGGER OUT plug
(compatible with Roland drum sound module equipped with DIGITAL TRIGGER IN port)

Power supply

Supplied from DIGITAL TRIGGER IN port (DC 5 V)

Current Draw

90 mA

Accessories

Owner's manual
Connection cable
Drum key

PD-140DS SIZE AND WEIGHT

Width - 380 mm
             15 inches

Depth - 380 mm
             15 inches

Height - 160 mm
             6-5/16 inches

Weight - 4.9 kg
              10 lbs. 13 oz.



CY-18DR SPECIFICATIONS

Size - 18 inches

Available playing methods (triggers)

Bow shot (high resolution position detection, wide dynamic range)
Bell shot (wide dynamic range)
Edge shot (wide dynamic range)
Choke (choke edge, bow touch)

Sensor system

Multi element sensor system
Bow sensor x 3
Bell sensor
Edge sensor
Touch sensor
Built-in sensing processor

Connectors

DIGITAL TRIGGER OUT port
(compatible with Roland drum sound module equipped with DIGITAL TRIGGER IN port)

Power supply

Supplied from DIGITAL TRIGGER IN port (DC 5 V)

Current draw

90 mA

Accessories

Owner's manual
Wing nut
Felt washer
Stopper
Connection cable
Cable tie

Options (sold separately)

Cymbal mount (MDY series)
Cymbal parts set (CYM-10, come with one set)



CY-18DR SIZE AND WEIGHT

Width - 470 mm
            18-9/16 inches

Depth - 470 mm
             18-9/16 inches

Height - 55 mm
             2-3/16 inches

Weight - 2.1 kg
              4 lbs. 11 oz.
